Why is compression force deflection important?

Durometer vs Compression Force Deflection (Psi)



two tires one with a psi of 10, the other with 35.

Our focus is on “Performance”! Compression Force Deflection, measured in pounds per square inch (PSI), is the accurate test method to measure material firmness at varying compressive levels — a true representation of performance as an ejector in an application.

Durometer is the measure of the hardness of a material’s surface. Since it only measures a small point of the material surface with limited penetration, the test method is less accurate in determining ejector performance.

Download PDF

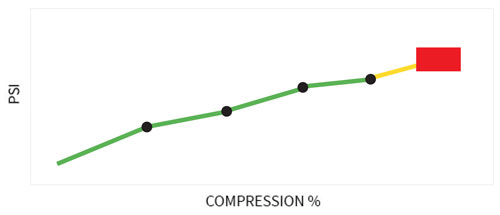

Densification Point

Functional Range of Motion Icons  Densification Point graph

What Is The Compression Percentage Of The Rubber On Your Die

Enter the information below

Total Compression Of Rubber In Inches During Each Cycle Of The Die:

Percentage of Compression:

lowest psi at compression
highest psi at compression

Swipe for More Information ➜

Typical Application

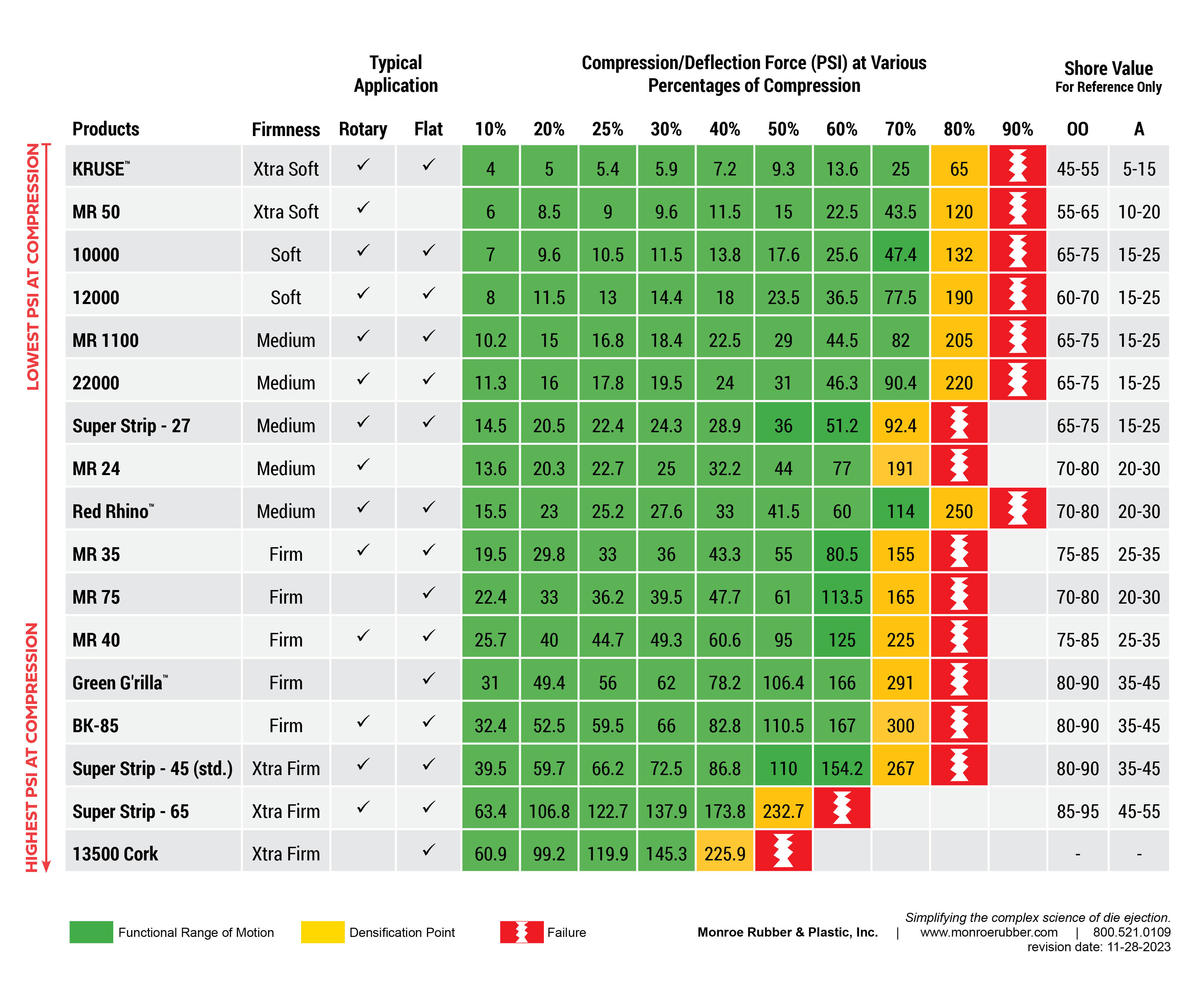

Compression/Deflection Force (PSI) At Various Percentages Of Compression

Shore Value For Reference Only

PRODUCT

FIRMNESS

ROTARY

FLAT

10%

20%

25%

30%

40%

50%

60%

70%

80%

90%

00

A

Xtra Soft

4

5

5.4

5.9

7.2

9.3

13.6

25

65

45-55

5-15

Xtra Soft

6

8.5

9

9.6

11.5

15

22.5

43.5

120

55-65

10-20

Soft

7

9.6

10.5

11.5

13.8

17.6

25.6

47.4

132

65-75

15-25

Soft

8

11.5

13

14.4

18

23.5

36.5

77.5

190

60-70

15-25

Medium

10.2

15

16.8

18.4

22.5

29

44.5

82

205

65-75

15-25

Medium

11.3

16

17.8

19.5

24

31

46.3

90.4

220

65-75

15-25

Medium

14.5

20.5

22.4

24.3

28.9

36

51.2

92.4

65-75

15-25

Medium

13.6

20.3

22.7

25

32.2

44

77

191

70-80

20-30

Medium

15.5

23

25.2

27.6

33

41.5

60

114

250

70-80

20-30

Firm

19.5

29.8

33

36

43.3

55

80.5

155

75-85

25-35

Firm

22.4

33

36.2

39.5

47.7

61

113.5

165

70-80

20-30

Firm

25.7

40

44.7

49.3

60.6

95

125

225

75-85

25-35

Firm

31

49.4

56

62

78.2

106.4

166

291

80-90

35-45

Firm

32.4

52.5

59.5

66

82.8

110.5

167

300

80-90

35-45

Xtra Firm

39.5

59.7

66.2

72.5

86.8

110

154.2

267

80-90

35-45

Xtra Firm

63.4

106.8

122.7

137.9

173.8

232.7

85-95

45-55

Xtra Firm

60.9

99.2

119.9

145.3

225.9

-

-

Functional Range of Motion

Densification Point

Failur

Failure
